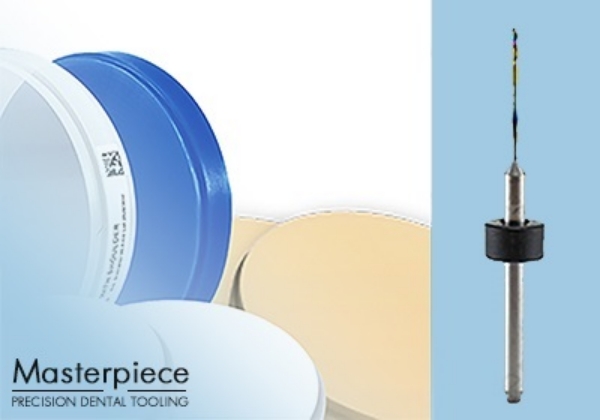

5X300/400 Masterpiece PMMA Tool D1.0xL3.5x44 CrN Coated Ballnose Endmill

5X300/400 Masterpiece Zirconia Tool D2.0xL6x50 CVD Diamond Coated Ballnose Endmill

Versamill OEM 0.6mm DLC Ballnose Endmill for Versamill 5X400 & 5X300

5X300/400 OEM Zirconia Tool D1.0xL16x50 Ballnose Endmill

Suprême.cad is a kind of lithium disilicate glass- ceramic block which is suited for CAD/CAM applications.

Suprême.cad is packaged in sets of (5) in size 18-15-13 and packaged in sets of (4) for size 40-15-15.

Material Properties
Popular in chair-side system restorations for its outstanding aesthetics, dental lithium disilicate glass-ceramics (CAD/CAM) has lower hardness before crystallization and can be quickly milled to a crown. The final strength is greater than 300Mpa after crystallization.

This material can be utilized for high-efficiency aesthetic restorations such as: veneers, inlays, onlays, partial crowns, anterior crowns, posterior crowns etc.

This form of ceramic block is utilized in a CAD/CAM system in a crystalline state (with a lilac color appearance) which is manufactured on a CNC milling machine utilizing a grinding technique.

After milling is completed, a porcelain furnace is used to crystallize the material at a temperature of 840-850°C yielding a restoration with a bi-axial flexural strength between 300Mpa-420Mpa.

Suprême UP-CAD blocks have been divided into two categories according to their respective translucency characteristics：

• HT - High Translucency, VA-VD 16 color system: A1/A2/A3/A3.5/B1/B2/BL1/BL2
• LT - Low Translucency, VA-VD 16 color system: A1/A2/A3/A3.5/B1/B2/C1/V2/D2/BL1/BL2

Download the Usage Instructions

Download the Brochure

Download the Material Saftey Data Sheet

Suprême UP-CAD is packaged in sets of (5) in size 18-15-13 and packaged in sets of (4) for size 40-15-15.
